ECP 2100M

The ECP 2100M is an advanced version of the ECP 2000M and has been engineered to deliver . Just like its predecessor, the ECP 2100M is a mirco-controller based unit that controls the flow of ink in offset machines. The product is ideal for and can be customised to fit machinery of any make & size.

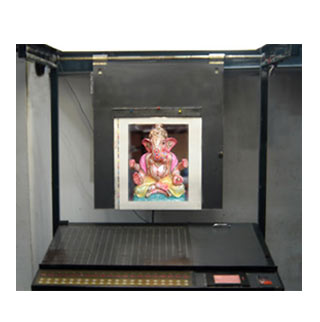

Complete Panel

The ECP 2100M is an advanced version of the ECP 2000M and has been engineered to deliver . Just like its predecessor, the ECP 2100M is a mirco-controller based unit that controls the flow of ink in offset machines. The product is ideal for and can be customised to fit machinery of any make & size.

  • Ink key motors
  • Ink Duct motors
  • Circumferential motors
  • Lateral motors
  • The ECP2100M uses RS-485 communication protocol which reduces the tedious wiring in ECP 2000M model. The complete control consists of a central CPU communicating serially with individual CPU for each motor.


    Front Panel

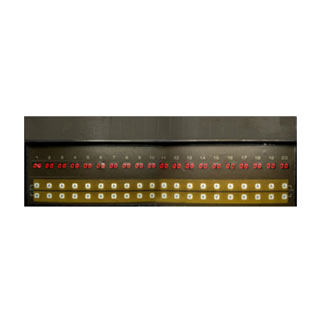

    The front panel is divided into two parts viz. the ink keys section and the touch-panel. The ink keys section digitally displays the percentage (in numbers between 0 and 99) of the ink flow and of the individual movement keys of each motor in either direction. The touch panel consists of the unit selection keys, movement keys for the registration and ink duct motors, individual reset keys, central lock key, and a few other function related keys. It also displays the currently selected unit and the positions of the motors (registration & ink duct) for the selected unit.


    Graphic LCD

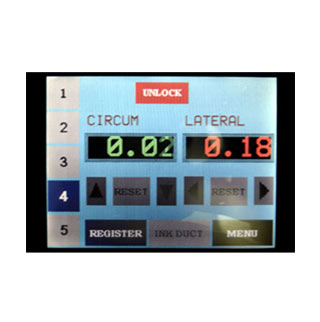

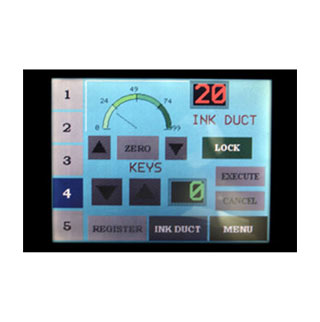

    The ECP 2100M consists of a main touch panel display. The panel displays various parameters such as the currently selected unit, the circumferential and lateral motor positions and ink duct positions. The panel also consists of buttons for motor movements & cylinder selection. While the motor movement is displayed in percentage from 0 to 99, the circumferential and lateral motor movements are shown in terms of plate movements measured in millimetres on either side of the centre.



    FEATURES
  • Considerably less wiring compared to its predecessor, ECP 2000 M
  • Internal Memory which can store up to 50 jobs
  • Ability to store the positions of all motors for each cylinder thus making the printing of repeated jobs very easy and fast
  • Graphic LCD Display for displaying complete press status on the run
  • Complete System Self diagnostics during the time power on
  • All internal power supplies with universal power Input 90-270VAC 50/60 Hz
  • Display of all crucial parameters like sheet count, speed of press in RPH, total sheets etc.
  • Under voltage, over voltage and phase sequence protection
  •
